- Cranking for power and powered by solar panel, no external batteries are needed, store energy by built -in rechargeable battery;green, environmental friendly, economy, safety, (the common battery will leak easily), reuse limitlessly.
- Low power consumption, you can also listen to the radio under sunlight when battery goes dead.
- Extra long cranking handle; Low noise but high efficiency; Low power consumption; Long working time.
- It adopts the best integrated radio circuit with high sensitive FM/AM radio that can catch every wonderful electric wave anywhere and anytime.
- Extra long antenna enhance the reception ability.
- Green LED tuning indicator and blue LED charging indicator.
- Speaker or earphone output, the volume is adjustable
- It can be charged by outside power.
- Simple outline and delicate appearance.
Main Technical Parameters:
| I Radio: ! | ||
| Sensitivity of the FM | MOuV | |
| Sensitivity of the AM Better than | 1.5 mV/m | |
| Reception scope of the FM | 88-108 MHz | |
| Reception scope of the AM | 530-1650KHZ | |
| The audio frequency output power | 2100 mW | |
| Radio working time after 1 minute cranking (2.5 – 3 cirdes/s) | *20 minutes | |
| Radio working time after 5 hours charging under sunlight | ■30 minutes | |
| Max. electricity by solar panel charging | 40mA | |
| Time to full-charge by solar panel | 20-30 hours | |
| Radio working time after being charged fully | »>7 hours | |
| I Chcrccd Kir 謎c – ‘ | ||
| Input voltage | 5V | |
| Fully charged time | =■8 hours | |
| I ccr+a life 1 | ||
| Switch | 5000 times | |
| The whole unit | 5 years | |
| The plastic part | 5 years | |
| 1 ssiaanflMtettW! 1 | ||
| Antenna length (external part) | (»33mm | |
| Product size | E30’73.41mm | |
| Product weight | -203g | |
| Others: | ||
| Specification of built-in battery | 300mAh, 2.4v | |
| Diameter of built-in loudhailer | <D40mm | |

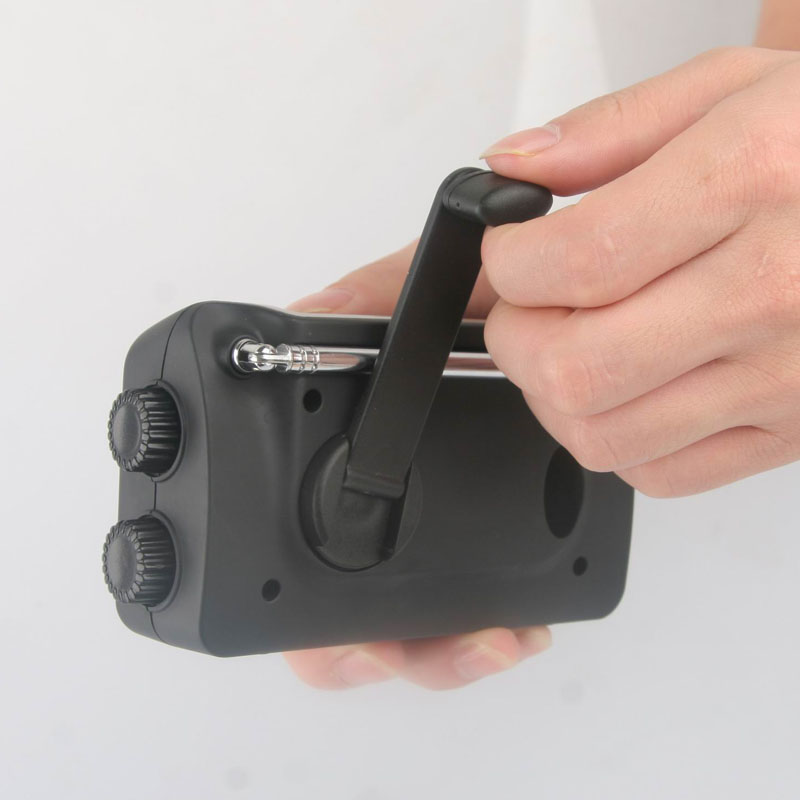

- Cranking for power:
Unlock the handle, crank it al the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge.f It’s better to crank it for no more than 4 circles per second.)
- Charged by solar power:
Put this unit on the windowsill, balcony and outdoors where sunlight can shine on. Let the sunlight shine on the solar panel vertically. Lighting of charging indicator shows that it is charging.
Note:
- Let the whole surface of solar panel be shined when charging, otherwise you will only get low charging efficiency.
- On cloudy days the solar panel can also charge the radio, but low charging efficiency.
- Let the sunlight shine on the solar panel vertically to enhance charging efficiency.
- Be aware of raining when charging outdoors.

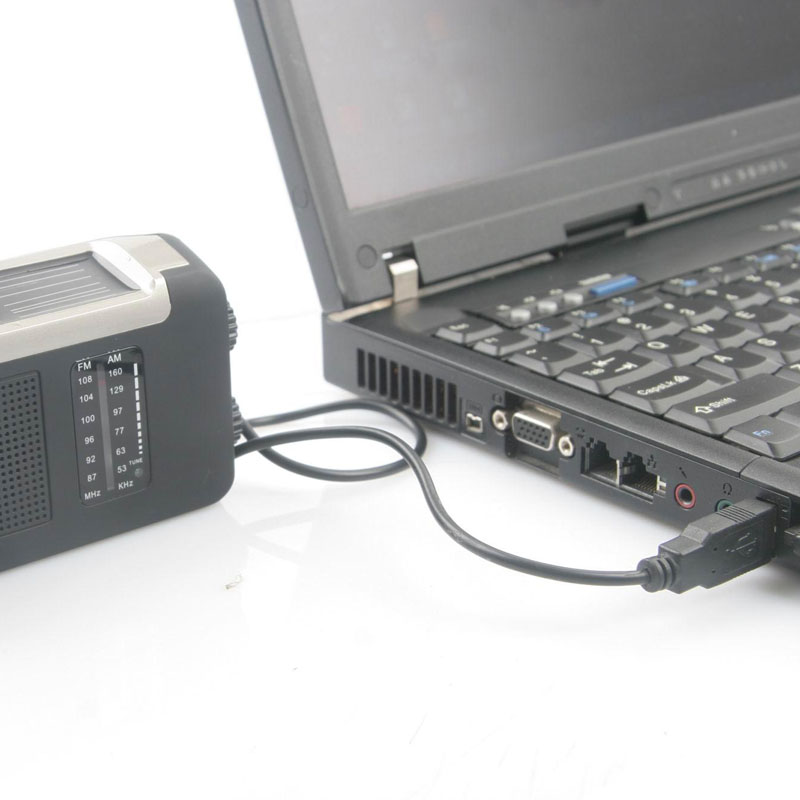

- Charged by outside power:
Insert the 5V USB power source to charge the internal battery, and about 6~8hours later it will be fully charged.

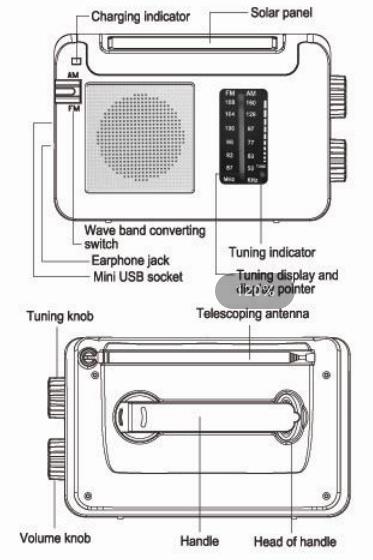

- Reception of radio:
- Operation of the radio switch and volume adjusting: Turn the volume knob anticlockwise to increase the volume. Contrariwise, turn the volume switch dockwise can decrease the volume gradually, a “crack” sound will be heard to show power off.
- FM/AM wave band shifting : push the switch down is FM, push it up is AM.
- Searching ways: Turn the “tuning knob”, contrapose the “tuning display’ to find the station you want to listen. When the signal is strong enough, the tuning indicator will light, then you can modulate the “tuning knob” slightly till the indicator brighter and make the volume more clear.
- Use of antenna:
- .This product adopts telescoping antenna to receive signal for FM. When the signal is weak, you can pull out the antenna or change the direction of the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong.
- .lt adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product property when the signal is weak.
Note:
- It is advised to turn the volume to the optimal position (be comfortable) when you listen. It will be anamorphic if the sound is too loud.
- Avoid places like high building, basement, etc as possible as you can, such places will badly influence the effect of the reception. Leave far away from the induction cooker, fluorescent lamp, car generator, motor, computer or such electrical equipment that may disturb the signal easily.
- Earphone:
Plug the earphone into the earphone jack, the loudhailer will be off at this lime. Be caution the things below when using the earphone:
- Adjusting the volume to proper position when listen, loo loud or listen for a long time will affect your hearing.
Avoid listening for a long time when you have fallen asleep.
