Solar & Dynamo Digital Display Radio Am/Fm

Performance range

This product adopts the high quality radio circuit with high-sensitive 2 band FM/AM radio, with digital display, more sensitive, built-in dual speakers, LCD display and timing power on function. It can catch every wonderful electric wave anywhere and anytime. The built-in battery can be charged in 3 ways: by hand crank, by solar panel and by outside power. It can also charge for mobile phone via connection cable.

Get a quick quote

Product Overview

FUNCTIONS

Cranking for power generation
Charged by solar panel
Charged by external adapter (optional)
Digital display of frequency, 2 band: FM/AM
Digital clock, timing power on
Charge digital devices, mobile phone, etc.

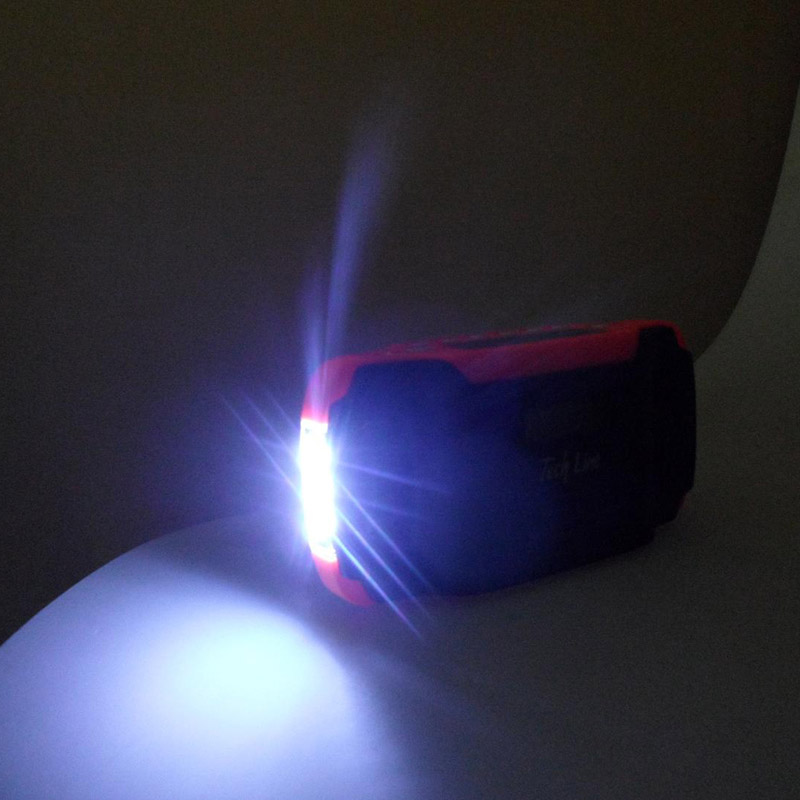

Lighting function

FEATURES

Cranking for power and powered by solar panel, no external batteries are needed, store energy by built-in rechargeable battery; green, environmental friendly, economy, safety, (the common battery will leak easily), reuse limitlessly
Low noise but high efficiency; Low power consumption; Long working time
Digital display, convenient to handle, more accurate frequency
Extra long antenna enhance the reception ability
Simple outline and delicate appearance

MAIN TECHNICAL PARAMETERS

1) Radio:

1. Sensitivity of the FM	Better than 10 uV
2. Sensitivity of the AM	Better than 3 mV/m
3. Reception scope of the FM	87-108 MHz
4. Reception scope of the AM	520-1620 KHz
5. The audio frequency output power	100 mW
6. Radio working time after 1 minute cranking (2.5 – 3 circles/s)	18-27 minutes
7. Lighting time after 1 minute cranking (2.5 – 3 circles/s)	27 – 36 minutes
8. Speaking time after 3 minutes cranking for charging mobile phone (2.5 – 3 circles/s)	4-15 minutes

9. Radio working time after 1 hour charging under sunlight (SOOW/M*)	20 – 30 minutes
lO.LIghting time after 1 hour charging under sunlight(500W/ )	23 一 32 minutes
11.Max. Current flux of being charged by solar	20mA
12. T>me of being fully charged under sunlight (500W/M⁷) 、 13. Radio working time after being fully charged	35 – 42 hours 7-9 hours
14. Lighting time after being fully charged	4-6 hours
15. Max. Luminous flux	11-14LM

2) Charged by outside power

1. Input voltage	5-5.2V
2. Charging interface	DC plug 03.553
3. Fully charged time	6 – 8 hours

3) Main parts life-span

Switch	5000 times
The whole unit	5 years
The plastic part	5 years

4) Size and Weight

Antenna length (external part)	About 37mm
Product size	Aboutl 567658mm
Product weight	About 203g

5) Others

Specification of bullt-ln battery	300mAh, 3,6v
Diameter of built-in speaker	036mm (two)
Generator power	5W

OPERATION METHOD

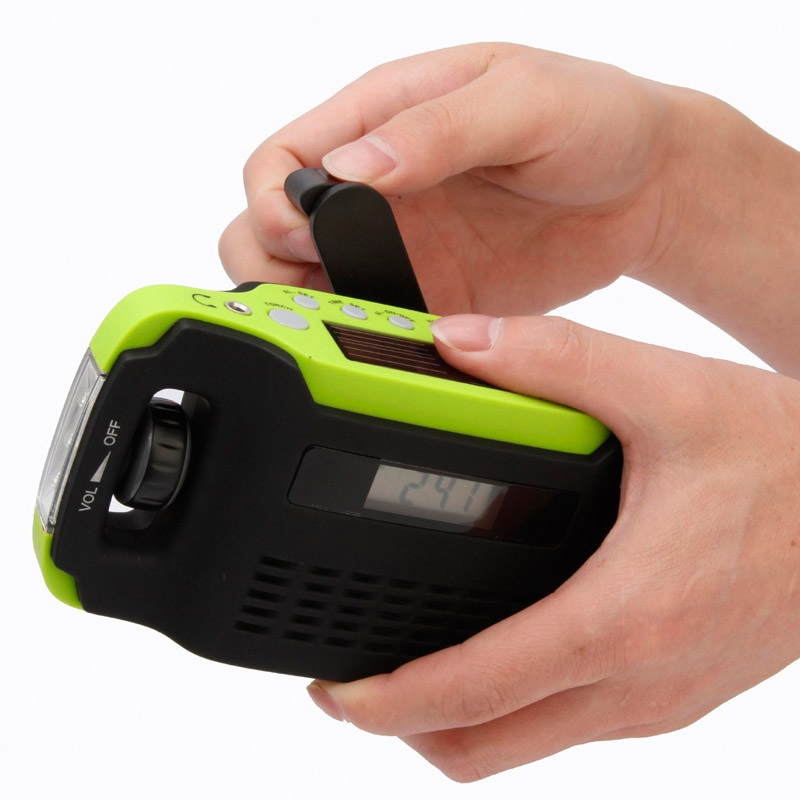

1. 1. Cranking for power:

Unlock the handle, crank it at the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge.( It’s better to crank it for no more than 4 circles per second.)

1. 1. Charged by outside power:

Connect with the 5V adapter to charge the internal battery, and about 6~8 hours later it will be fully charged.

1. 1. Charge for digital devices, mobile phone, etc.

Connect this product with other digital devices via connection cable, unlock the handle, crank it at the speed of 2.5 to 3 circles per second. Illumination of charging indicator indicates that charge is working.

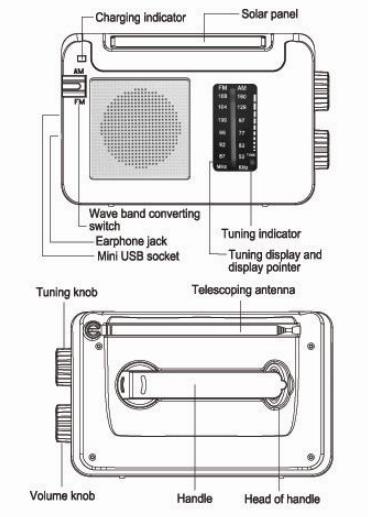

1. 1. Reception of radio:
  2. Operation of the power switch and volume adjusting: First make sure the power switch is at “ON” position. Turn the volume knob dockwise to increase the volume. Contrariwise, turn the volume switch anticlockwise can decrease the volume gradually, a “crack” sound will be heard to show power off.
  3. Wave band shifting : Push the wave band converting switch to choose FM, AM.
  4. Station Search: Observe the display screen while tuning and select the radio program you needed. Tune the knob to an optimal position in which the reception effect is the best.
  5. Use of antenna:
  6. . This product adopts telescoping antenna to receive signal for FM. When the signal is weak, you can

extend the antenna or change the direction of the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong.

1. 1. . It adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product

property when the signal is weak.

Note:

It is advised to turn the volume to the optimal position (be comfortable) when you listen.
Avoid places like high building, basement, etc as possible as you can, such places will badly influence the effect of the reception. Leave far away from the induction cooker, fluorescent lamp, car generator, motor, computer or such electrical equipment that may disturb the signal easily.
Time setting

Local time setting

Press and hold the “Time set” button, then press the hour adjust button and minute adjust button to adjust time, after adjusting the time, release the button, the system will recognize automatically.

Timing power on setting

Press and hold the ‘*Alarm set” button, then press the hour adjust button and minute adjust button to adjust time, after adjusting the power on time, press the **Alarm ON/OFF” button to confirm it.

Tips:

To turn on or to turn off the timing power on, press the “Alarm ON/OFF” button.

Use of Background light

When at night, press the background light button for lighting. Lasts for 10 seconds.

Earphone:Plug the earphone into the earphone jack, the speaker will be off automatically at this time. Be cautious of the things below when using the earphone:
1. Adjusting the volume to proper position when listen, too loud or listen for a long time will affect your hearing.
2. Please turn the radio off before sleep to avoid listening for a long time when you have fallen asleep.
3. When driving or walking, in order to avoid potential danger, please do not use earphone.

CAUTIONS

Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting. Keep rotating steadily.
In order to assure the using life of the battery and mechanical parts, please pay attention to the things below:
Do not crank it for more than 5 minutes when the power of the battery is enough (working normally) and less than 15 minutes when it runs out of power.
When the light is dim or the radio is soundless, it means the battery is lack of power badly, please turn off the light and radio or crank it for a while.
Cranking it as even as possible (keep rotating steadily, 2.5 or 3 circles per second is best). Avoid cranking too violently and quickly or changing the cranking direction abruptly.lbo slowly cranking would make current weak and influence the charging effeciency, and too violently cranking will possibly damage the driving system.
Do not crank it for a long time or too violenlyt.
In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.
Do not drop or hit this product.
Avoid using corrosive liquid or hard cloth to cleanse.
Turn off the light when charging to enhance the efficiency of charging .
The product will be a little hot if cranking for a long time .
We do not give notice again if the parameter of this product changed.
We reserve the final right to Interpret this product.
