Main Technical Parameters
Lighting:
| The Max. Luminous Flux(100% Lighting) | ≥150Lm |
| The Max. Luminous Flux(50% Lighting) | ≥70Lm |
| The Max. Luminous Flux| (Flashing) | ≥30Lm |
| Working Time after Fully charge (100% Lighting) | ≥3 Hours |
| Working Time after Fully charge (50% Lighting) | ≥6 Hours |
| Working Time after Fully charge (Flashing) | ≥8 Hours |
Mosquito Killer:
Ultraviolet LED
UV Wave Length
Working Time after Fully charge
Grid Voltage
Power
6X 0.06W
360-400 nm
≥30 hours
- 500V
5W
Others
| Specification of Built-in Battery | 3.7V, 2000mAh Polymer Li Battery |
| Input Voltage/Current | 5V/ 1A |
| Fully Charge Time via USB Input Cable | Approx. 3 Hours |
| Lantern LED | 5730 SMD, 7500-8000K |
| Ultraviolet LED | 0.06W, Φ5mm |
Operation Method
Lantern:
Press the “Lantern” Switch to shift lighting mode, from 100% lighting, 50% lighting, Flashing and
Off.

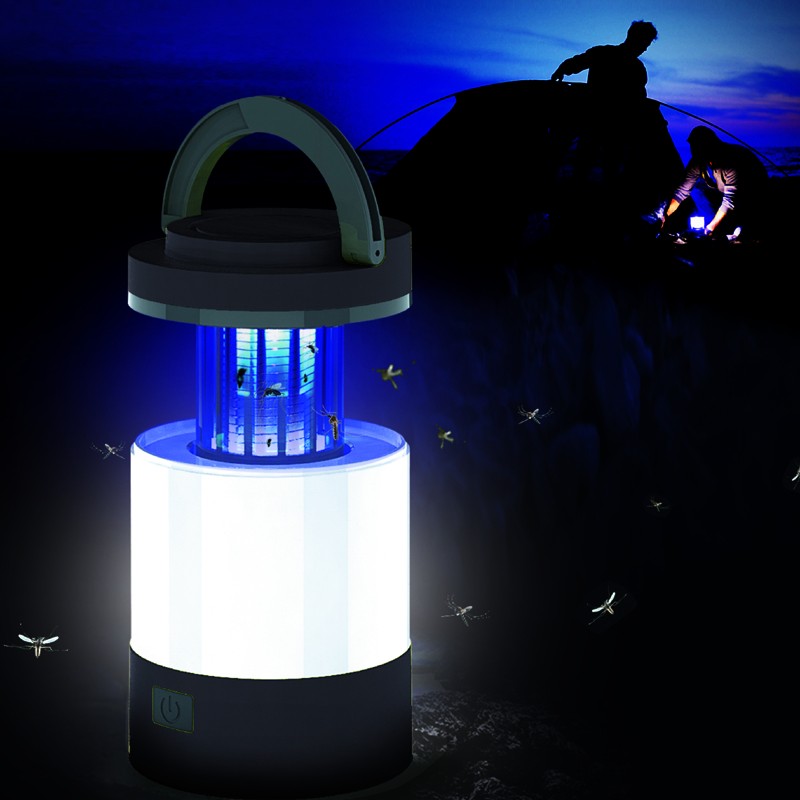

Mosquito Killer:
Pull the lantern to turn on the Mosquito Killer.
Input Charge:
Micro USB cable connect with AC Adaptor, PC etc., charging indictor go on flashing red when input
charging and keep red fully charge.

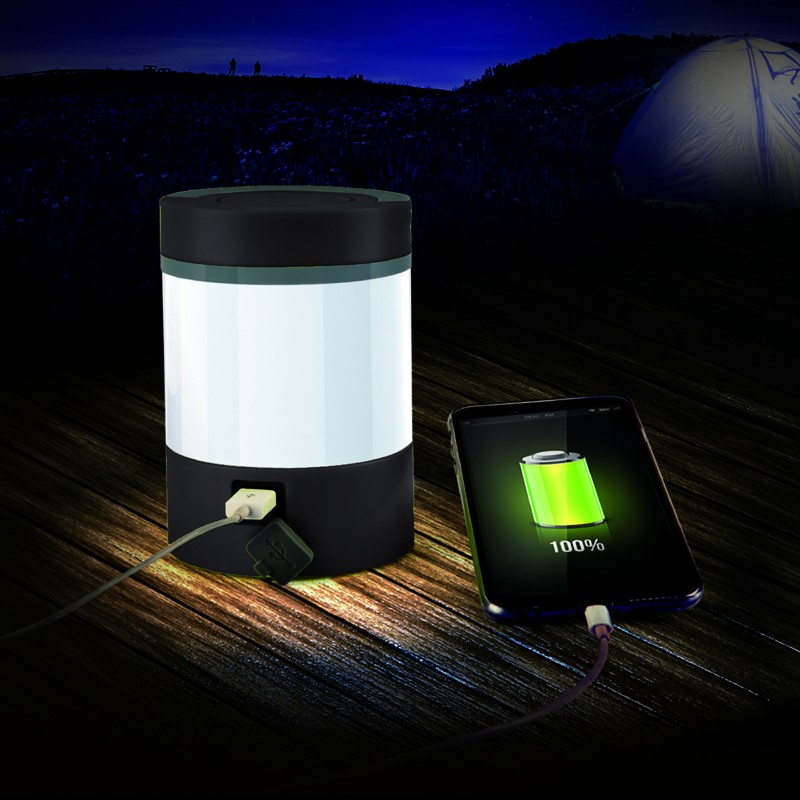

USB Output Charge:
Mobile or digital devices’ input USB cable connect with output port,the charging indictor go green when output charging.
Cautions:
Do not look directly into LED as this may cause damage to your eyes
This product is not a toy.
Contains small parts not suitable for children under 5 years of age
Turn off the light when input charge
Structural Diagram
